Description

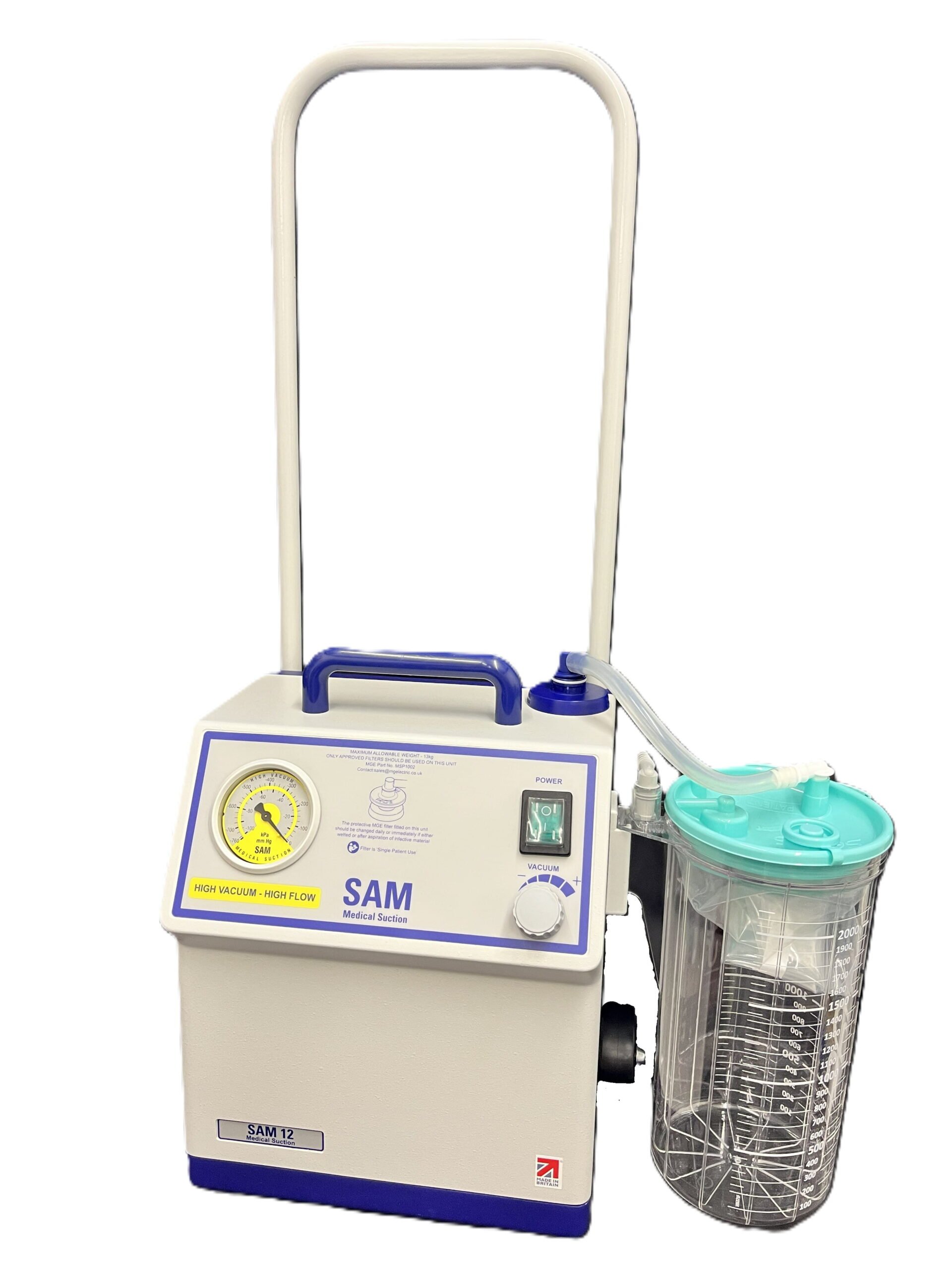

The SAM 12 aspirator is a top quality surgical suction unit designed to be highly adaptable. Its reputation for reliability and ease of operation has established it among the most widely used units in the medical world today.
At the heart of the unit is our new MG30 oil free diaphragm vacuum pump that requires minimal maintenance and helps prevent cross contamination. The MG30 also benefits from an enclosed crankcase for quiet operation, IP44 totally enclosed fan cooled (TEFC) permanent capacitor motor with long life sealed bearings and thermal protection.
Safety features include an internal hydrophobic filter to minimise the risk of contamination as well as providing a further level of protection to the pump.
Key Features:
- The unit has a disposable bacterial filter mounted externally on top to provide a barrier for the patient.
- Easy to read vacuum gauge with Yellow colour coding to signify high vacuum
- Illuminated On \ Off Power Switch and simple twist Vacuum Control for accurate setting.
- Fitted MGE internal Hydrophobic Filter to protect pump from accidental fluid ingress
- Units come as Mobile versions fitted with wheels and a convenient handle.
Specifications:
- Vacuum Flow rate 0 to 0.85 bar / 0 to 650 mmHg 30 l/min
- Collection Jars 1 x 2 litre
- Unit Dimensions 38 x 45 x 20 (H x W x D cm)
- Weight 10kg
- Noise Level 50dB
- Voltage 230v +/- 10%~ 50/60Hz
110v +/- 5%~ 50/60Hz - Complies with: Medical Directive 93/42/EEC, BS EN ISO 10079-1, BS EN 60601-1, BS EN 60601-1-
